RS Push-Pull Props in action
Your benefits at a glance-
Fast and safe handling: Rough adjustment and fine adjustment for realizing the appropriate length take place safely within seconds from the installation area.

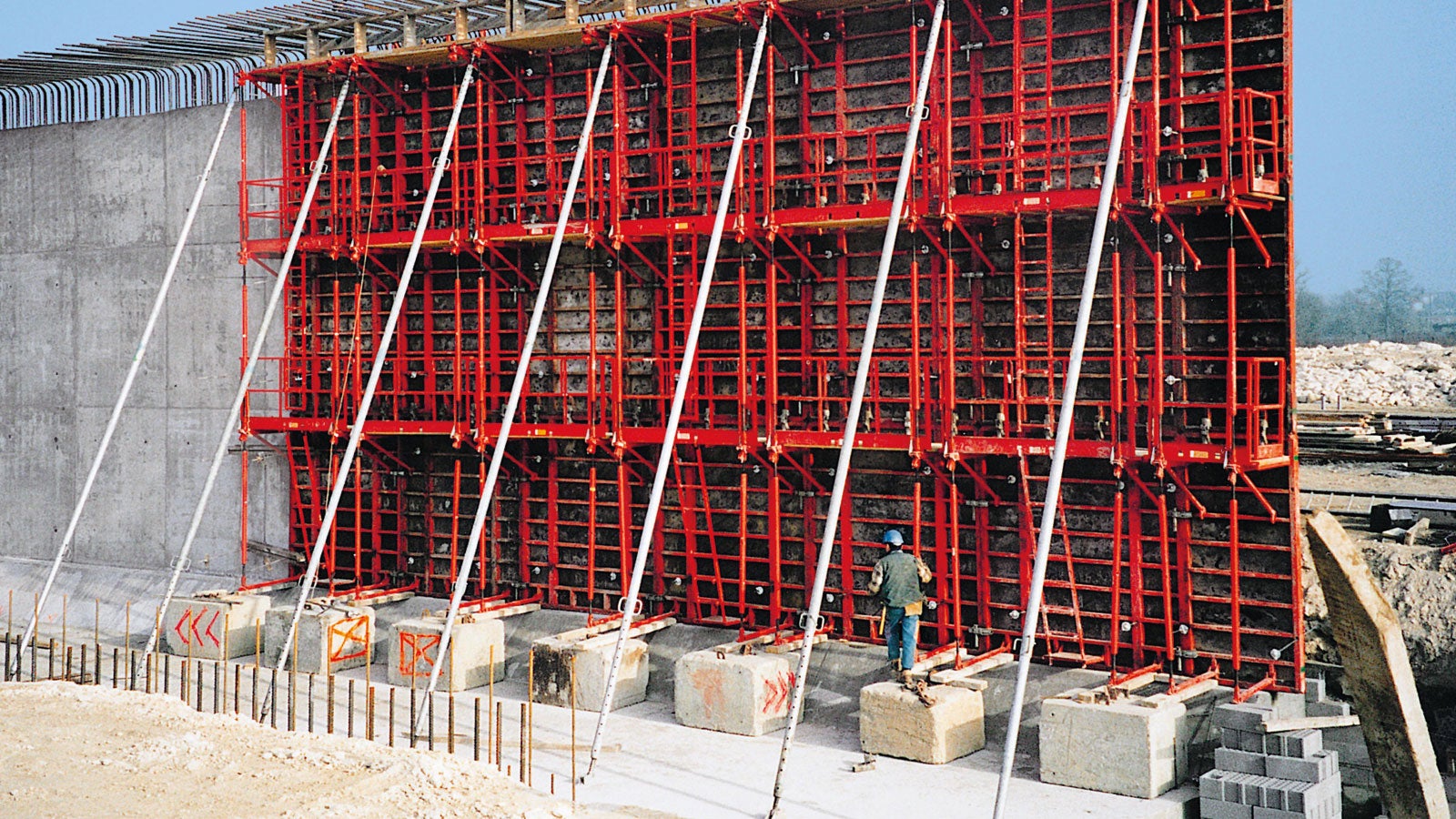

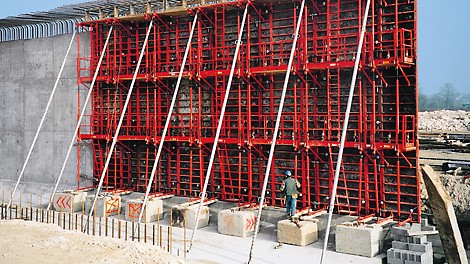

Galvanized tubes and threads ensure permanent protection against corrosion and long service life.
-
Used also with prefabricated concrete elements. Push-Pull Prop Adapter and Quick Connector mounted from a safe position.
Product Data Sheet
System type
Props
Dimensions

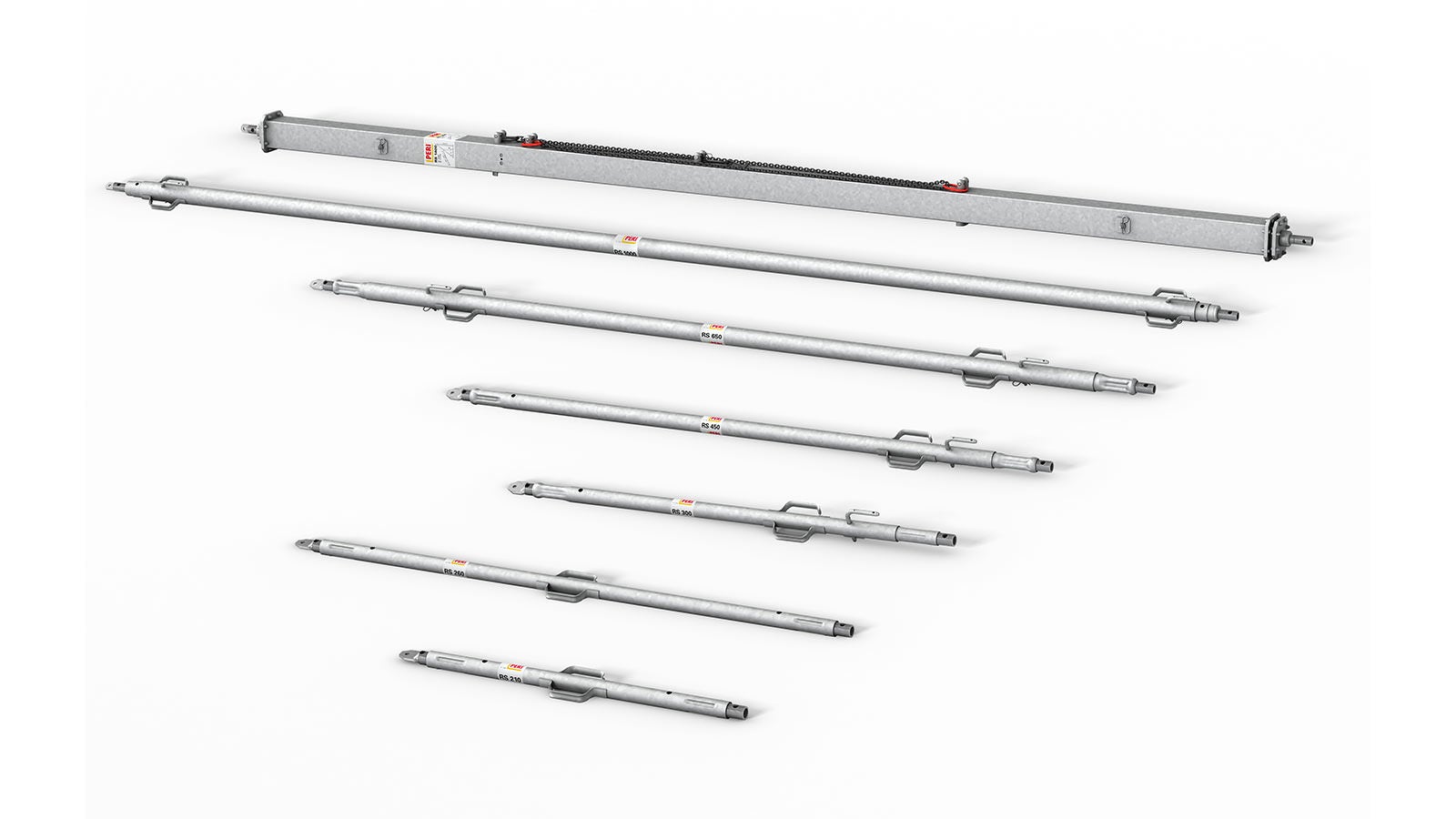

Extension lengths: 1.30 m - 2.10 m (RS 210) | 2.30m - 2.60m (RS 260) | 1.90m - 3.00m (RS 300) | 2.80m - 4.50m (RS 450) | 4.30m - 6.50m (RS 650) | 6.40m - 10.00m (RS 1000) | 6.40m - 14.00m (RS 1400) | Rough adjustment in 10 cm grid
Material
Steel
Anti-corrosion and surface coating
Hot-dip galvanizing
Load
Tensile and compressive force: Pulling and pushing force: up to 28 kN
Other
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
Compatible with
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
